New Design Hammer Mill Machine 5mm Combined Type Feed Pellet Making Machine

  • 1
  • 2

Brand Name : MIKIM

Model Number : SFSP56×36

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : $500.00 - 910.00/ Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 sets per month

Delivery Time : 7-10 work days

Packaging Details : packed by wooden export package or loading by container

Name : Mobile Hammer Mill Machine Wood Grinder Crusher Machine For Sawdust Powder

Voltage : 380V

Type : Mill Machine

Quantity of the hammers : 56pcs

Dimension(L*W*H) : 610*635*780mm

Capacity(t/h) : 650-800kg/h

Contact Now

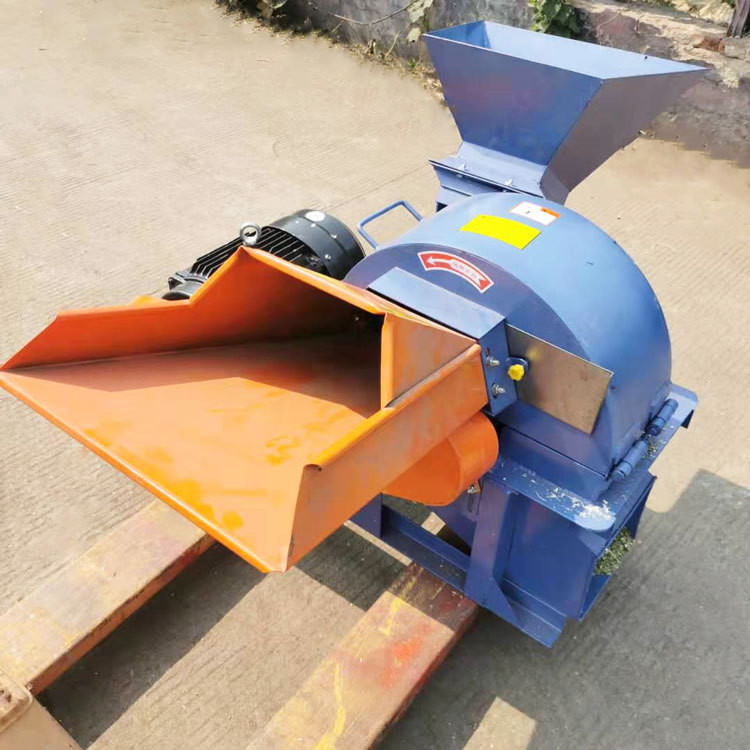

New Design Combined Type of Sawdust Hammer Mill with Feed Pellet Making Machine Wood Crusher Pelletizer

This type machine is hammer mill and pellet mill two in one machine, it can save labor and energy consumption. It mainly from straw, corn stalk, rice stalk etc to produce into 6MM/8MM/10MM/12MM Pellet for biomass fuel / Animal feed.
The hammer mill is used to crushing material into powder shape before enter into pellet mill, and then the powder shape material directly enter into pellet mill to pressing pellets. This type machine can be use diesel engine or electrical motor driven, the hammer mill and pellet mill used the same diesel engine or electrical motor.

MODEL NO.
OUTPUT(KG/H)
POWER (KW)
PELLET DIAMETER(mm)
SIZE(cm)
WEIGHT(KG
KN-YD-200
100-150
15
6-8
160*145*180
450
KN-YD-250
200-300
22
6-10
175*160*190
580
KN-YD-300
300-400
30
6-12
180*165*190
700

It has wide range of materials, such as sawdust, wood, straw, rice husk, bagasse, cotton stalk, peanut shell, bamboo, empty fruit branch, pulverized coal, waste paper, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials and other can be making into biomass pellets without any additive.

For the pellets production, here is the requirements for the raw materials:
1.
Sawdust Size: 2~5mm
2.
Sawdust Moisture: 10-18%
